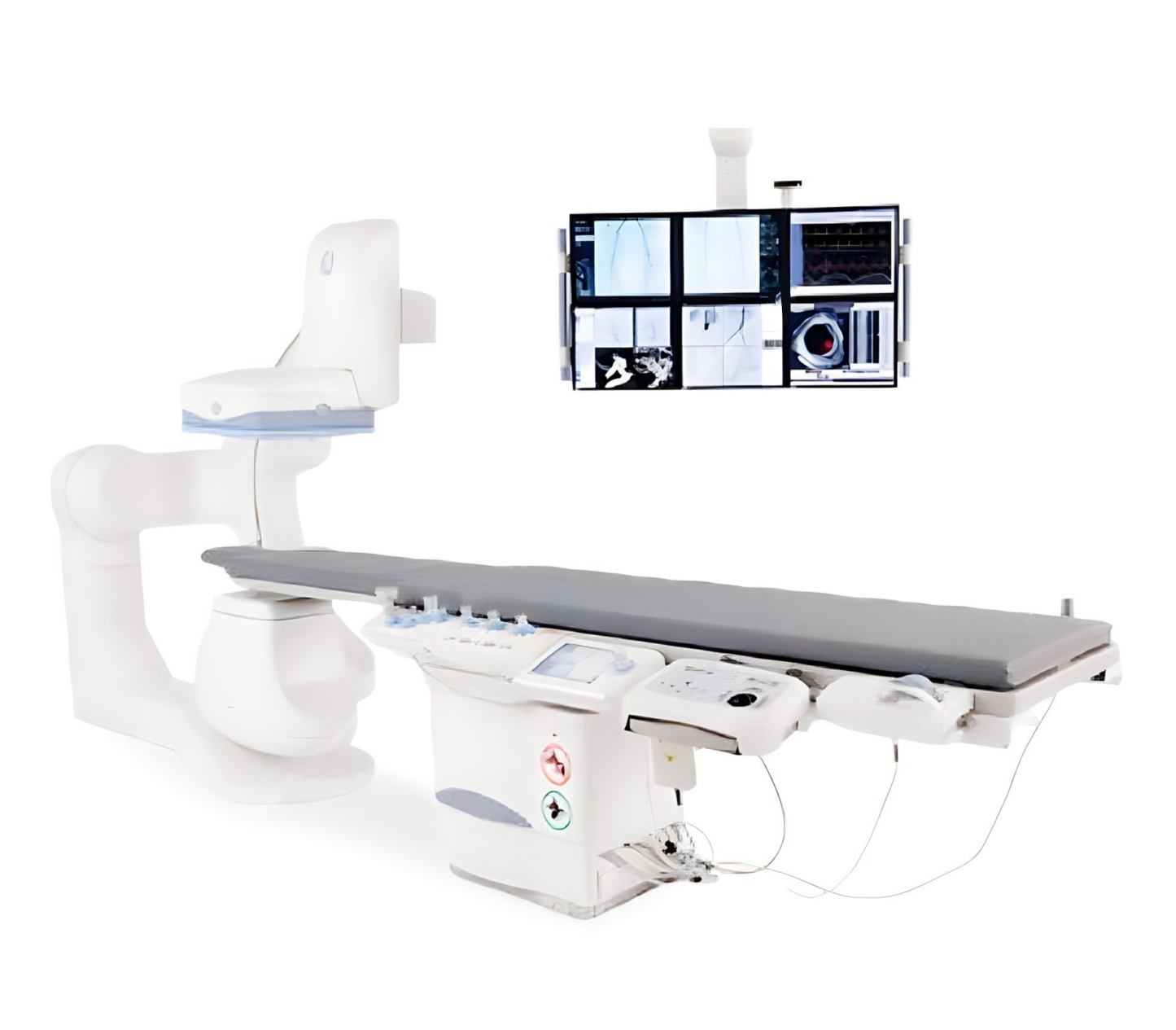

GE Innova 3100 IQ Plus Cath & Angio Lab

GE Innova 3100 IQ Plus Cath & Angio Lab

Incoming Stock - shipping time may vary

Price:
Regular price $75,000.00
Regular price Sale price $75,000.00
Shipping calculated at checkout.
  • Brand: ge
  • Model: Innova 3100
  • Type: Cath/Angio Labs
  • Refurbished

    This item has undergone a thorough inspection and in-house restoration process. While it may show some signs of previous use, it has been tested and verified to be 100% operational.

Secure checkout

Shipping to anywhere in the continental US

High quality used equipment

Professional services available

Product Overview

The GE Innova 3100 is a complete cardiovascular cath lab system that provides superior picture quality, intelligent dosage control, and simple patient placement to healthcare practitioners. This completely integrated system addresses the needs of both interventional and diagnostic angiography operations, giving high-quality imaging performance on a constant basis. The system's heart is an angio table with a remarkable weight capacity that allows for adjustable patient placement. User-friendly interfaces and modern components also improve efficiency and accuracy. It integrates into clinical workflows effortlessly because to its extensive picture storing capabilities and compliance with DICOM worklists.

  • Detector Screen Size: 0 Mag - 11.8 inches, 1 Mag - 7.9 inches, 2 Mag - 6.3 inches, 3 Mag - 4.7 inches
  • Hi-resolution 1249 line monitor: 50 Hz
  • Visibility Range: 1.6 to 5.1 inches
  • Gantry L-arm Rotation: +/- 100 degrees on vertical axis
  • C-Arm Rotation: 50 degrees cranial, 45 degrees caudal
  • C-Arm Pivot Rotation: -117 to +105 degrees RAO/LAO
  • Isocenter to Floor Distance: 42 inches
  • Tube Focal Spot to Isocenter Distance: 28.3 inches
  • SID Range: 35 to 46.9 inches
  • Patient Weight: 450 lb max.
  • Table Dimensions: 131 in x 26.4 in
  • Table Horizontal Float Movement: 8 way
  • Horizontal Motorized Movement: 2 way
  • Table Base: 24 in x 20.5 in
  • Table Rotation: +/- 180 degrees
  • Table Longitudinal Travel: 67 inches
  • Table Longitudinal Speed: 0 to 6 inches per second
  • Table Vertical Travel: 30.7 to 42.5 inches
  • Table Vertical Speed: 1 inch per second, 60 Hz
  • Generator Output Power: 100 kW
  • Generator Range of Frequency: 20 to 60 kHz
  • Color LCD Monitor
  • Console with mouse and keyboard
  • Hand switch
  • Stores up to 68,000 angio images and 136,000 cardiac images
  • Floor-mounted gantry
  • Image detector
  • Comes with generator, x-ray tube, and collimator
