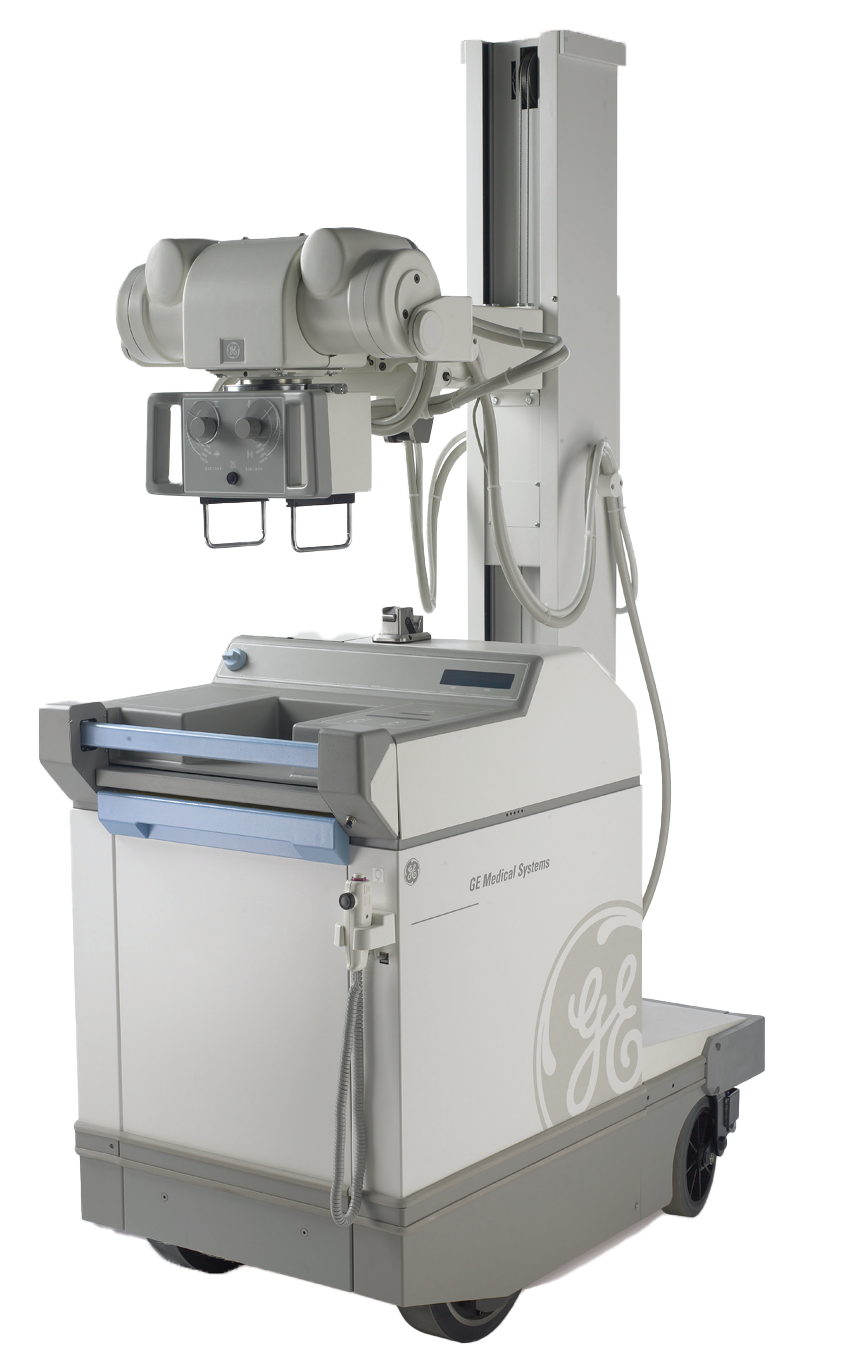

GE AMX 4 Plus Portable X-Ray

GE AMX 4 Plus Portable X-Ray

In Stock and Ready to Ship

Price:
$4,500.00
$4,500.00
Los gastos de envío se calculan en la pantalla de pago.
  • Brand: ge
  • Model: AMX 4 Plus
  • Type: Mobile X-Rays

  • Refurbished

    This item has undergone a thorough inspection and in-house restoration process. While it may show some signs of previous use, it has been tested and verified to be 100% operational.

Secure checkout

Shipping to anywhere in the continental US

High quality used equipment

Professional services available

Product Overview

The GE AMX 4 Plus portable X-ray machine provides consistent radiographic quality while being simple to use. It excels in routine procedures because it is battery-powered and adaptable to various medical settings. With its rotating arm and tube, it simplifies bedside studies and can provide up to 50 high-quality exposures on a single charge. The system's dual drive motors allow for easy movement in difficult environments.

  • Weight: Approximately 1,050 lb
  • Dimensions: Approximately 45.5 x 25.5 x 76 inches
  • Battery Capacity: 20,000 mAs at 100 kWp (fully charged)
  • Movement Range: 52.5 inches
  • Lowest Position Movement: 26.1 inches from floor (max.)
  • Highest Position Movement: 78.6 inches from floor (max.)
  • Horizontal Movement: 24 to 40 inches
  • Collimator Rotation: 180 degrees (range), 90 degrees (right and left), 0 and 90 degrees (detent)
  • Tube Column Rotation: 360 degrees
  • Tube Trunion Rotation: 120 degrees (range), 110 degrees (forward), 10 degrees (backward), 0 and 90 degrees (detent)
  • Tube and Yoke Rotation: 360 degrees (range), 0, +/-90, and +/-180 (detent)
  • Collimator Imaging Scope: 17 x 17 iches
  • Average Brightness at 39.4 inches from Focal Spot: 16-foot candles
  • Column Rotation: 270 degrees
  • Compact and easy to move
  • Lightweight handswitch
  • High-quality images
  • Wide range of movement
  • Maintenance-free rechargeable bettery
  • Diagnostic software for self-check
  • Digital microprocessor control
  • Stress-relief column support
  • Column-centering detent
